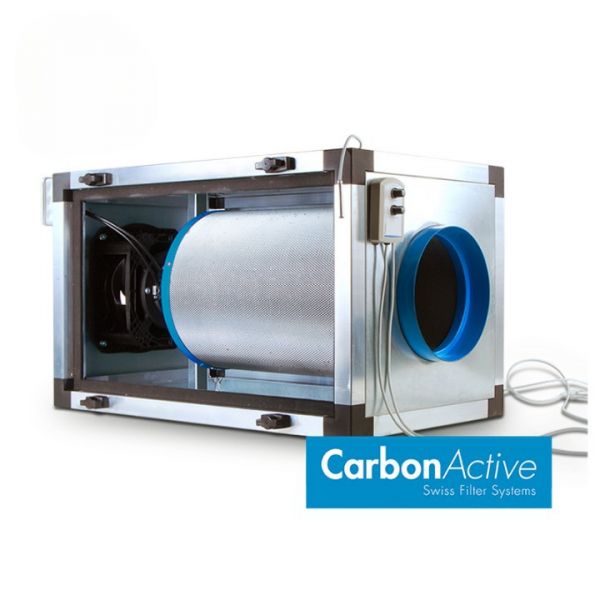

EC inline filter Unit HL 800M3 / H / 1200PA

The EC Inline Filter Unit is used where the air must be filtered by gas and odor molecules and particles. The unit can either be operated with a granulate, standard or pollen filter or, in extreme cases, with a double activated carbon filtration, for absolutely pure air.

Gases and smells as well as particles of all kinds can be filtered. EC inline filter unit-with EBM-Pope EC fan. The compact filter system offers all components in a ventilation box for easy use.

A wide variety of filter types fit into the unit for different application purposes.

The unit is delivered without a filter. The corresponding filters must be ordered separately.
- Standard activated carbon filter https://growbox.ch/collections/luftung/products/akf-carbonactive-homeline-200-m-h-125?variant=39329887256687
- granulate activated carbon filter
- pollen filter

If necessary, an additional activated carbon filter can be installed in front of the filter system in order to increase the absorption performance. Due to the enormous pressure structure of the fan, this is easily possible.

Radial fan: EBM-Papst K3G190- RD45-03
Connection: mm Ø200
Print: Pa 1200
Gross weight: KG 21
Dimensions: mm 400 x 400 x 650 W / A / VAC 170 / 1.4 / 200 - 240 incl. 220V cable, 2x RJ45 connection

Price without filter / matching filters are:

Carbon Active Standard AKF 800ZL Ø200
Carbon Active Granulate AKF 800GL Ø200
Pollen filter Ø200 500 - 100m3/h

Price without control ----------------- EC fans cannot be operated without control. A controller is imperative. Order your EC Controller 4 in 1 right here: https://growbox.ch/collections/luftung/products/carbonactive-temp-humidity-controller

This product is sent directly by our supplier. Depending on the inventory, it can take up to 2 weeks for the order to be with you.
